Understanding breaker requirements for subpanels can be confusing. This guide clarifies the National Electrical Code (NEC) rules, dispelling common misconceptions and providing practical insights for safe and compliant subpanel installations.
Feeder Breaker Fundamentals
The NEC requires a breaker in your main panel—the feeder breaker—to protect the wires supplying power to your subpanel. This breaker is crucial for preventing overloads and short circuits in the feeder wires, safeguarding your electrical system. Think of it as the primary line of defense for your subpanel’s power supply.
Subpanel Breaker: Necessary or Not?
While a breaker inside the subpanel is common, it’s not always required by the NEC for overload protection. The feeder breaker already handles that. A subpanel breaker primarily serves as a convenient local disconnect. This allows you to quickly shut off power to the subpanel without accessing the main panel, which is especially useful for maintenance or emergencies.
Detached Structures: A Different Story
For detached structures like sheds or garages, the NEC does require a disconnect. While the main panel’s feeder breaker technically fulfills this, a breaker at the subpanel offers significantly improved accessibility and safety. This allows for quicker power shutoff in emergencies and simplifies maintenance.

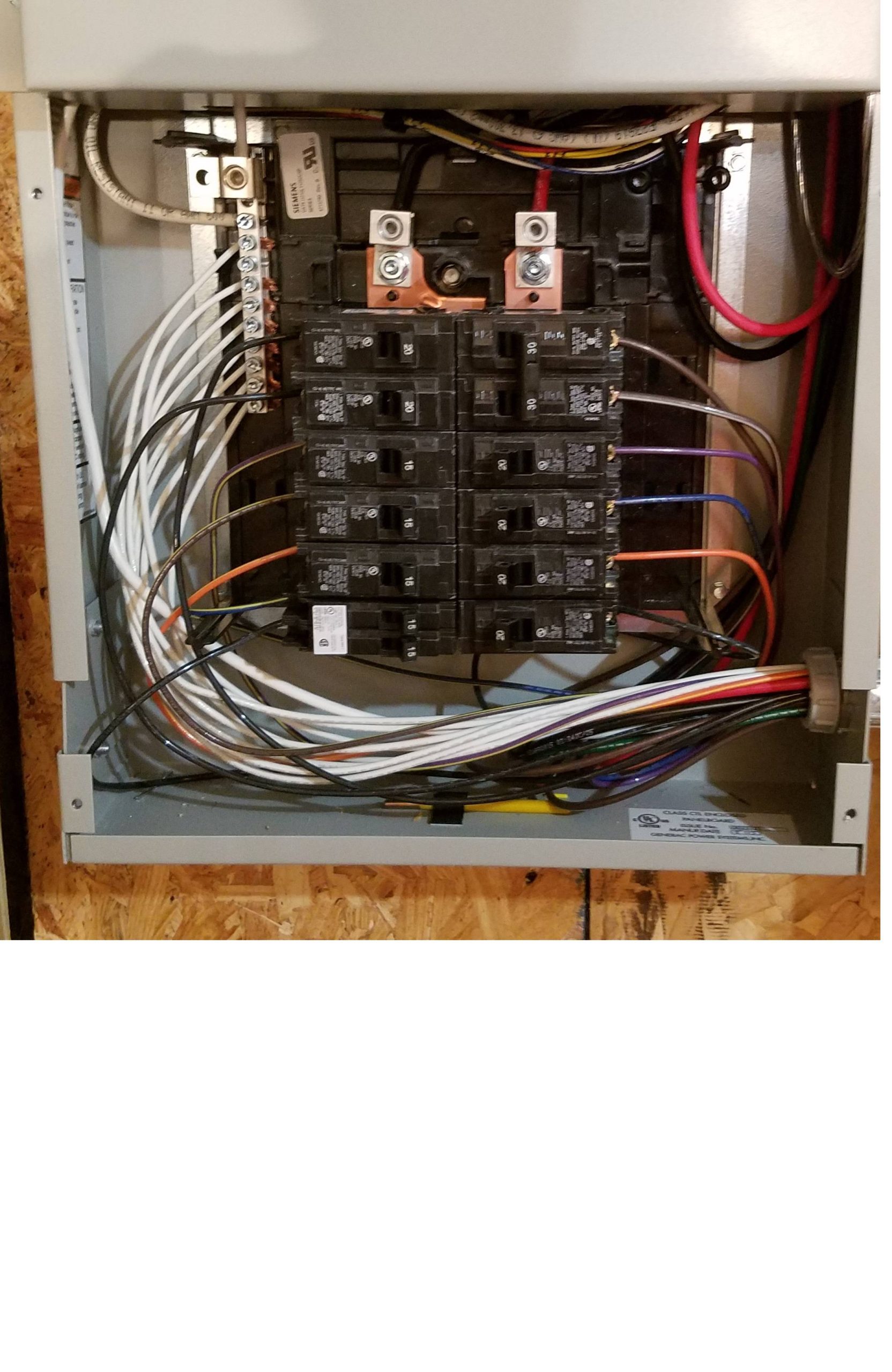

MLO Panels: Simplifying the Setup
Main Lug Only (MLO) panels, which lack a main breaker, further illustrate that the NEC doesn’t inherently mandate a breaker within the subpanel. They rely solely on the feeder breaker for protection, emphasizing the code’s focus on safeguarding the feeder wires.
Wire Sizing and the NEC
Correctly sizing wires and breakers, according to NEC Table 310.15(B)(16), is paramount. The feeder breaker’s amperage and the wire gauge must be compatible to prevent overheating. Consulting a qualified electrician is highly recommended to ensure proper sizing and compliance. https://www.wavesold.com/can-i-use-durafoam-for-vinyl-underlayment discusses proper material use regarding wiring, which indirectly affects your setup.
Future-Proofing Your Subpanel
While a main breaker in the subpanel might not be mandatory, it’s often a wise investment. It simplifies future circuit additions, provides localized control, and enhances safety. This forward-thinking approach can save you headaches and expenses down the line.
Ongoing Research and the NEC
Electrical codes are not static. Ongoing research and technological advancements may influence future NEC revisions. Some experts suggest future codes might emphasize localized subpanel protection, reflecting the evolving understanding of electrical systems.
Disclaimer: Safety First
This guide aims to clarify NEC requirements, but electrical work is inherently dangerous. Always consult a qualified electrician for installations or modifications. This information is for educational purposes and should not replace professional advice.
What are the NEC Rules for Subpanels?
This section delves deeper into NEC regulations for subpanels, empowering you to discuss your electrical needs confidently.
Main Breaker: When and Why
The feeder breaker in your main panel generally serves as the primary disconnect for the subpanel. A main breaker inside the subpanel offers convenience and localized control, but isn’t always required by the NEC. However, detached structures do require a local disconnect, often fulfilled by a subpanel main breaker. Another internal link here https://www.wavesold.com/does-centipede-grass-take-over-bahai relates to the placement of your outdoor subpanel (and possible grounding issues).
Grounding and Bonding Essentials
The NEC mandates separate neutral and ground bars in all subpanels (NEC 250.32(B)(1)). This separation is vital for safety, preventing dangerous current flow on the grounding system.
Load Calculations: The Key to Compliance
The NEC focuses on the total electrical load on your subpanel, not the number of circuits. Your main panel and feeder wires must be sized to handle the combined power draw. This can require many calculations based on wire material, gauge, and resistance in correlation to the amperage the subpanel will receive.
Planning for the Future
Anticipating future electrical needs is crucial. A larger subpanel with a main breaker provides flexibility for expansion. This proactive approach can save you from costly upgrades later.
Navigating NEC Nuances
While this guide simplifies complex concepts, always consult a qualified electrician and your local inspector for definitive guidance on NEC requirements specific to your area and project.
How Many Breakers Does a Subpanel Have?
This section clarifies the factors determining the number of breakers a subpanel can accommodate.
Breaker Capacity: Amps and Slots
A subpanel’s breaker capacity depends on its amperage rating and the physical number of breaker slots. The total amperage of all breakers cannot exceed the subpanel’s rating.
Breaker Placement and Necessity
A feeder breaker in the main panel is mandatory. A main breaker inside the subpanel, while often beneficial for safety and convenience, isn’t always an NEC requirement. However, detached structures require a main disconnect, usually in the form of a subpanel main breaker.
The Six-Breaker Guideline
The “six-breaker rule,” suggesting a main breaker isn’t needed for subpanels with six or fewer breakers, is a guideline, not a strict NEC rule. Detached structures still require a disconnect regardless of breaker count.
The Value of a Subpanel Main Breaker
Even when not required, a subpanel main breaker offers localized control, simplified troubleshooting, and enhanced safety. It’s a valuable addition worth considering.
Do I Need a Breaker to Feed a Sub Panel?
This section reinforces the necessity of a feeder breaker and discusses the benefits of a subpanel main breaker.
Protecting the Power Path
A feeder breaker in the main panel is essential to protect the wires feeding the subpanel. This breaker prevents overloads and safeguards your electrical system.
Subpanel Main Breaker: Added Safety
A main breaker in the subpanel is highly recommended for attached structures, offering localized control and enhanced safety. It’s not always required, but provides valuable benefits.
Detached Structures: Disconnect Mandate
Detached structures require a main disconnect, often achieved with a subpanel main breaker. This ensures safe and convenient power shutoff.
Choosing the Right Breaker Size
Selecting the correct feeder breaker size is crucial. A qualified electrician can help determine the appropriate amperage rating for your setup.
Grounding and Bonding: Essential Elements
Proper grounding and bonding are fundamental for electrical safety. These elements protect against shocks and ensure a reliable electrical system.
Future-Proofing with a Main Breaker
A subpanel main breaker, even if not required, simplifies future expansion and enhances control. It’s a worthwhile investment for long-term flexibility.
Professional Consultation: Always Recommended
Always consult with a qualified electrician for any electrical work. Professional expertise ensures code compliance and safety.
